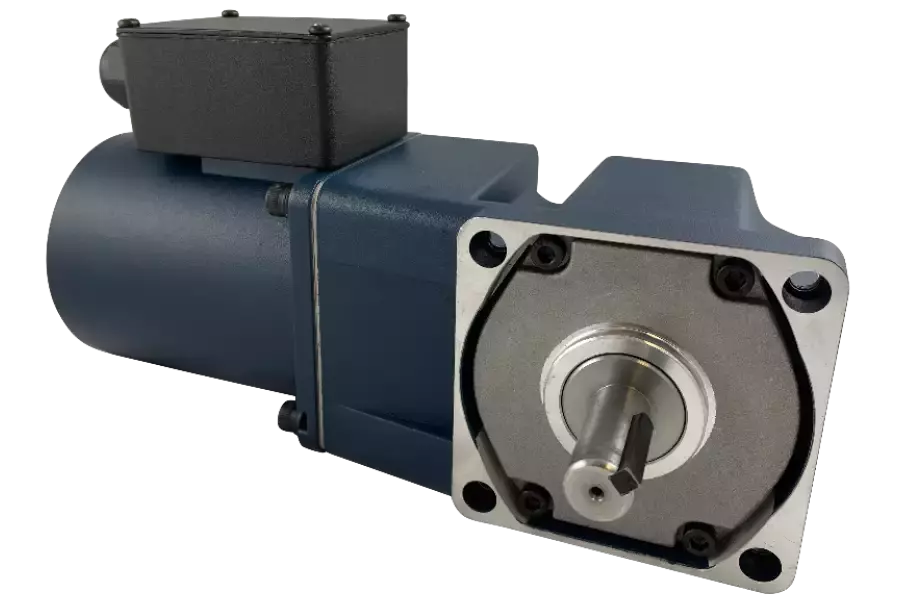

Spiral Bevel Gear Motors

Bevel Gear Motors provide commercial equipment manufacturers with excellent efficiency and high speed capabilities in a compact, right-angle package. Most commonly offered with either straight or spiral gear geometries, bevel gear motors are the preferred right-angle solution in high or continuous duty cycle applications where efficiency, quiet operation, and maximum life are priorities.

For applications that require higher torque versus speed capabilities, inline gear stages can be integrated into the input or the output of a bevel gear reducer to increase the reduction ratio without drastically reducing the efficiency of a gear motor.

Power Electric is a leading supplier of bevel gear motor products specifically engineered and optimized to our clients’ unique application requirements. Our expertise in motor and gearing technologies enable OEMs to develop, qualify, and implement new gear motor solutions in less time, using fewer internal resources, and with essentially no risk.

Product Attributes

  • 25W to 250W Output Power
  • 12 – 120VDC, 110/220V/460V AC Versions
  • Gear Ratios from 3:1 to 180:1
  • 5 – 60 Nm (531 lb-in) Rated Output Torque
  • Brushless DC, Brushed DC, AC Induction motor options
  • 10 – 1000 RPM Output Speed Range
  • IP20 to IP54
  • Electric brake option available
  • UL, CSA, CE available
  • Fully customizable

Benefits

  • Excellent efficiency
  • Long-life
  • Compact, right-angle
  • Quiet operation
  • Extensive range of motor types, frame sizes, ratios
  • Back-drivable
  • Great for continuous or high-duty cycle applications
  • Optimized to unique application requirements

Applications
