Nidec Motors and Gear Motors

Power Electric is your United States supplier of Nidec/Valeo motors and gear motors

Our company prides itself on being your #1 custom gear motor provider offering unique designs specific to your application. The core of our business lies in our custom gear motor services.

We are an authorized distributor for Nidec / Valeo. Know your part number? Fill out the contact form and our team will get started on the quote. *Please note: quotes can take 2-3 business days.

Nidec Motors come in multiple specifications so you can match exact to your equipment needs.

Configurations are in 12 categories:

DCK31
DCK35
GMAG
GMPD
GMPI
GMPG
GMP
GMPS
SW2L
SWMG
SWMP
SWMV

Nidec Catalog

Sort By
Product Search
Categories
Rated Voltage (v)

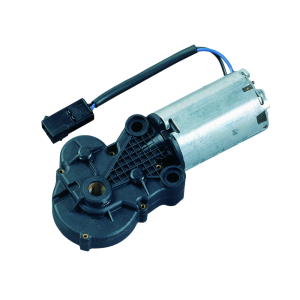

GMPD Series
405-030-image
405-030
Rated Voltage (v): 12
405-228-image
405-228
Rated Voltage (v): 24
405-724-image
405-724
Rated Voltage (v): 12
405-794-image
405-794
Rated Voltage (v): 24
405-923-image
405-923
Rated Voltage (v): 24
405-968-image
405-968
Rated Voltage (v): 12
404-682-image
404-682
Rated Voltage (v): 24
404-764-image
404-764
Rated Voltage (v): 24
404-980-image
404-980
Rated Voltage (v): 12
GMPD Series
405-030
405-030-image



12-volt and 24-volt motor with interference suppression and hall sensors

Used in mechanical engineering, backrest adjustment on automobiles.

Download Spec Sheet

Rated Voltage (v): 12
405-228
405-228-image



12-volt and 24-volt motor with interference suppression and hall sensors

Used in mechanical engineering, backrest adjustment on automobiles.

Download Spec Sheet

Rated Voltage (v): 24
405-724
405-724-image

12-volt and 24-volt motor with interference suppression and hall sensors
Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 12
405-794
405-794-image

12-volt and 24-volt motor with interference suppression and hall sensors
Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 24
405-923
405-923-image

12-volt and 24-volt motor with interference suppression and hall sensors
Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 24
405-968
405-968-image

12-volt and 24-volt motor with interference suppression and hall sensors
Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 12
404-682
404-682-image



12-volt and 24-volt motor with interference suppression and hall sensors

Used in mechanical engineering, backrest adjustment on automobiles.

Download Spec Sheet

Rated Voltage (v): 24
404-764
404-764-image



12-volt and 24-volt motor with interference suppression and hall sensors

Used in mechanical engineering, backrest adjustment on automobiles.

Download Spec Sheet

Rated Voltage (v): 24
404-980
404-980-image



12-volt and 24-volt motor with interference suppression and hall sensors

Used in mechanical engineering, backrest adjustment on automobiles.

Download Spec Sheet

Rated Voltage (v): 12
GMPD Series
405-030-image
405-030
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles. Download Spec Sheet
Rated Voltage (v): 12
Max Torque (Nm): 25
No-Load Speed (min-1): 22
Nominal Power (W): 42.3
Nominal Current (A): 3.3
No-Load Current (A): 2
Max Current (A): 11
405-228-image
405-228
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles. Download Spec Sheet
Rated Voltage (v): 24
Max Torque (Nm): 21
No-Load Speed (min-1): 19
Nominal Power (W): 44.6
Nominal Current (A): 1.9
No-Load Current (A): 1.2
Max Current (A): 6
405-724-image
405-724
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 12
Max Torque (Nm): 23
No-Load Speed (min-1): 24
Nominal Power (W): 45
Nominal Current (A): 3.8
No-Load Current (A): 3
Max Current (A): 14
405-794-image
405-794
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 24
Max Torque (Nm): 21
No-Load Speed (min-1): 52
Nominal Power (W): 37.1
Nominal Current (A): 1.5
No-Load Current (A): 1.5
Max Current (A): 10
405-923-image
405-923
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 24
Max Torque (Nm): 21
No-Load Speed (min-1): 52
Nominal Power (W): 37.1
Nominal Current (A): 1.5
No-Load Current (A): 1.5
Max Current (A): 10
405-968-image
405-968
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles
Rated Voltage (v): 12
Max Torque (Nm): 23
No-Load Speed (min-1): 24
Nominal Power (W): 40.4
Nominal Current (A): 3.4
No-Load Current (A): 3
Max Current (A): 12.3
404-682-image
404-682
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles. Download Spec Sheet
Rated Voltage (v): 24
Max Torque (Nm): 40
No-Load Speed (min-1): 43
Nominal Power (W): 113
Nominal Current (A): 4.688
No-Load Current (A): 3
Max Current (A): 17.5
404-764-image
404-764
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles. Download Spec Sheet
Rated Voltage (v): 24
Max Torque (Nm): 22
No-Load Speed (min-1): 23
Nominal Power (W): 36.3
Nominal Current (A): 1.3
No-Load Current (A): 1
Max Current (A): 5.25
404-980-image
404-980
  12-volt and 24-volt motor with interference suppression and hall sensors Used in mechanical engineering, backrest adjustment on automobiles. Download Spec Sheet
Rated Voltage (v): 12
Max Torque (Nm): 28.6
No-Load Speed (min-1): 45
Nominal Power (W): 91.59999999999999
Nominal Current (A): 8.300000000000001
No-Load Current (A): 4
Max Current (A): 35.7
